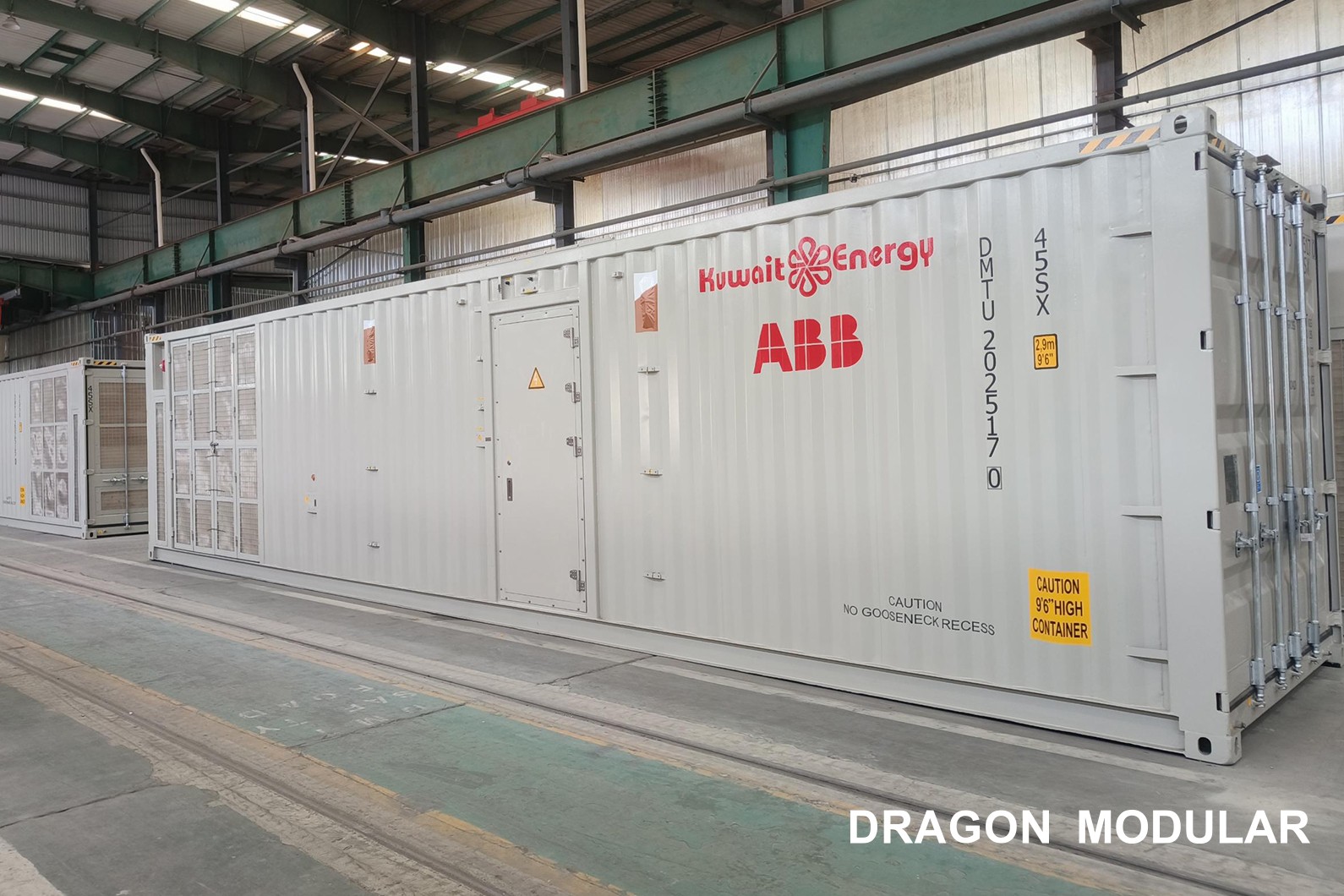

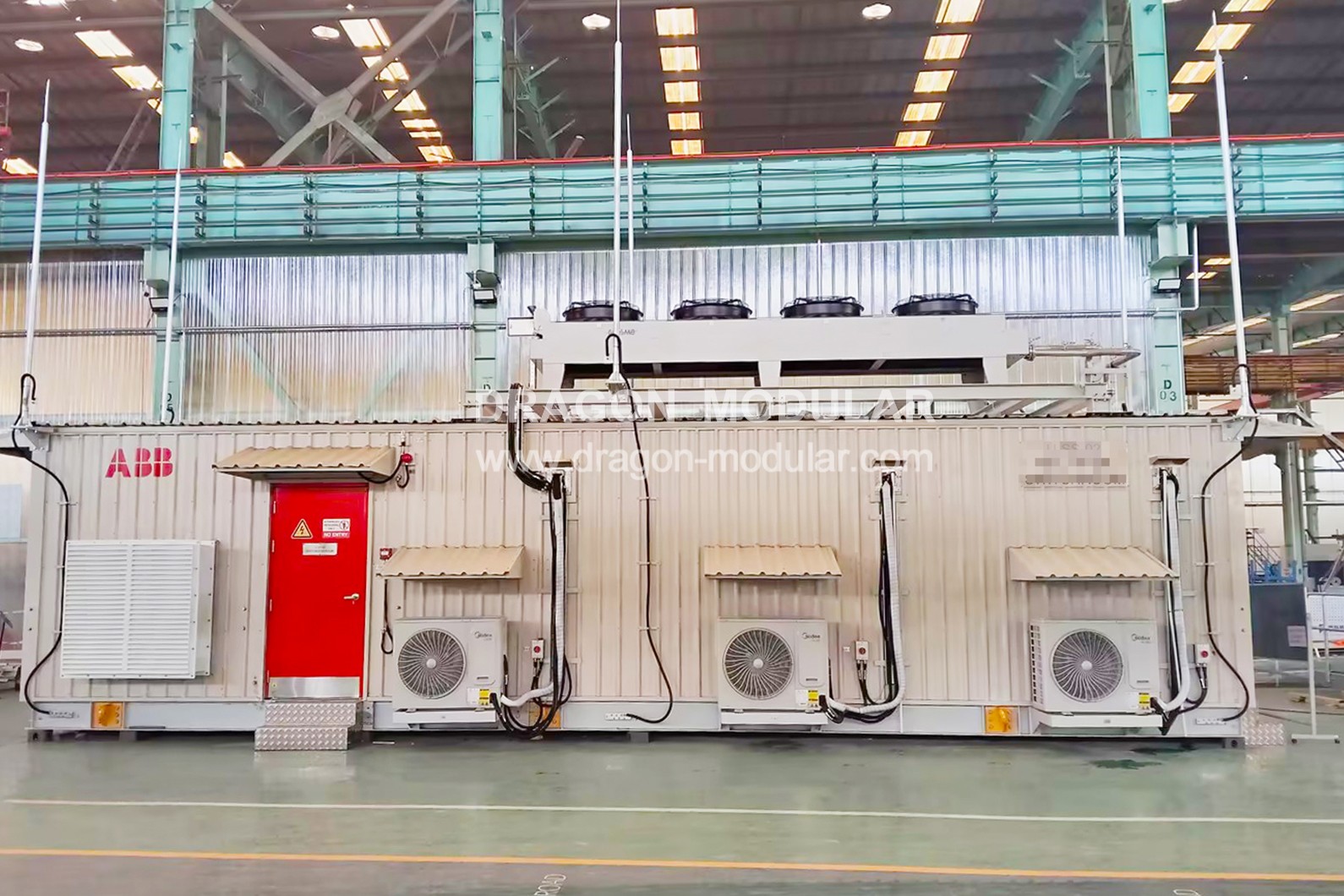

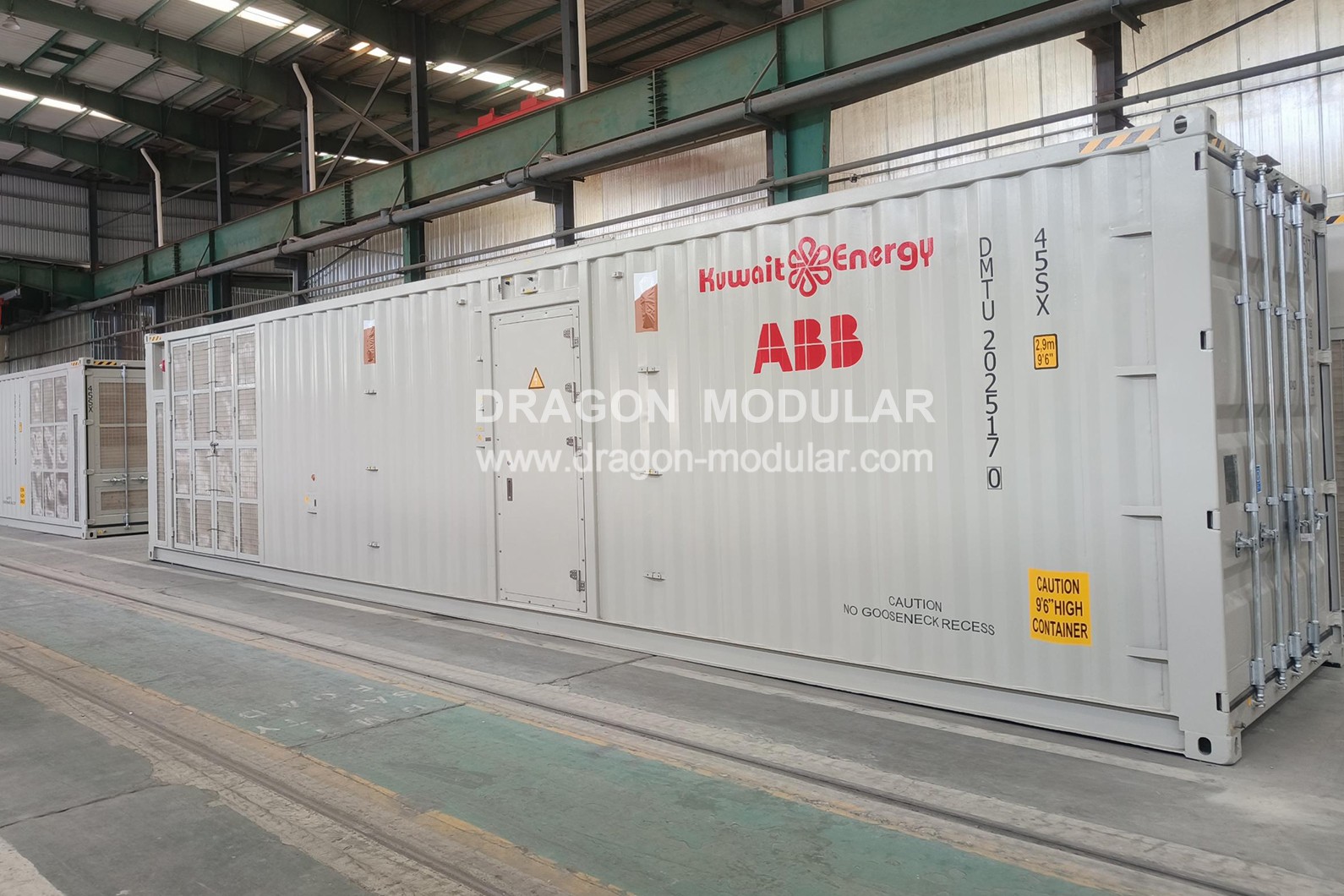

E-Houses are customized prefabricated modules, integrated system building coupled with power distribution,electrical equipment, automation controls, HVAC systems, protection systems, and others. E-Houses can be applied in many industrial applications. These versatile units are designed for a broad range of industrial applications, delivering significant benefits such as time savings, cost efficiency, and a comprehensive,one-stop solution.
Advantages
- Proven experience in fabricating E-Houses in accordance with IEC, EN, and other globally recognized standards (e.g., ISO, UL)
- Compliance with local statutory requirements and regulatory authorities across various regions
- Time saving in comparison with traditional forms
- Pre-assemble and tested in the factory to ensure normal operation on site
- Engineering for the integration of the devices and systems upon customer request
- Enhanced process control and stringent quality assurance
- Shorter preparation time for executing projects
- Quick assembly on site, accelerated on-site installation and commissioning
- Only limited construction site infrastructure is required due to modular prefabrication.
Product Features
- Designed to meet DNV 2.7-2, DNV 2.7-3, and IEC 60079-13 standards
- Customizable in a range of sizes up to 12.5m (L) x 6.5m (W) x 4.5m (H) per single module
- Configurable as single, multiple, or stacked modules
- Available as manned or unmanned instrument enclosures
- Various equipment and systems such as CCR cabinet, VESDA system, UPS, purge & pressurization system,
marine air conditioning system and others upon request
- Engineered for harsh environments and severe weather condition from -20°C to +55°C
| Model | Exterior(mm) | T.W.(Kgs) | Payload(Kgs) | MGW(Kgs) | Module |
| DMT-45-SIE | 12000x4500x4000 | 20000 | 12000 | 32000 | Single |
| DMT-65-SIE | 12000x6500x4000 | 26000 | 14000 | 40000 | Single |
Other sizes and configurations may be supplied on request
