We draw on a wealth of technical knowledge to develop customized offshore modular lab solutions. Our designs are meticulously crafted, covering layout planning, explosion protection (Ex), structural analysis, heating and cooling load
assessments, equipment selection, plumbing, fume extraction, and precision electrical system planning. Each lab design also incorporates a seamless "Plug and Play" installation concept to ensure rapid deployment in demanding environments.

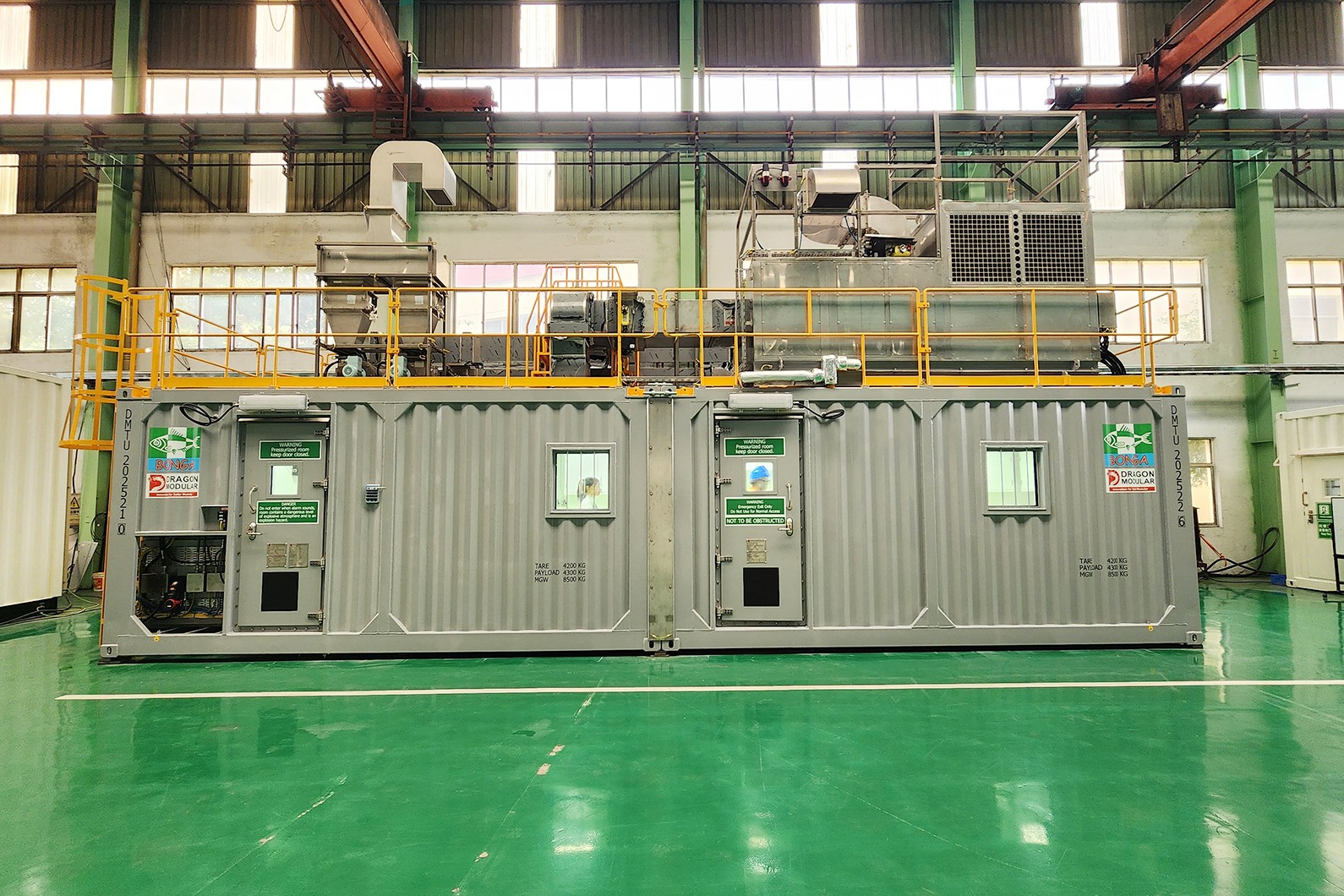

The modular lab is composed of two interconnected units with dimensions of 26 ft (8,000 mm) in length, 20 ft (6,000mm) in width, and 11.5 ft (3,500 mm) in height.
Product Features
- Facilitates straightforward utility connections for fast installation and reduced downtime
- Dual-stage heating and cooling systems deliver reliable temperature stability
- Equipped with differential pressure sensors, inductive flow monitoring, and pneumatically operated fire dampers to maintain stringent safety standards
- Features A60-rated access and emergency doors for secure and easy entry/exit

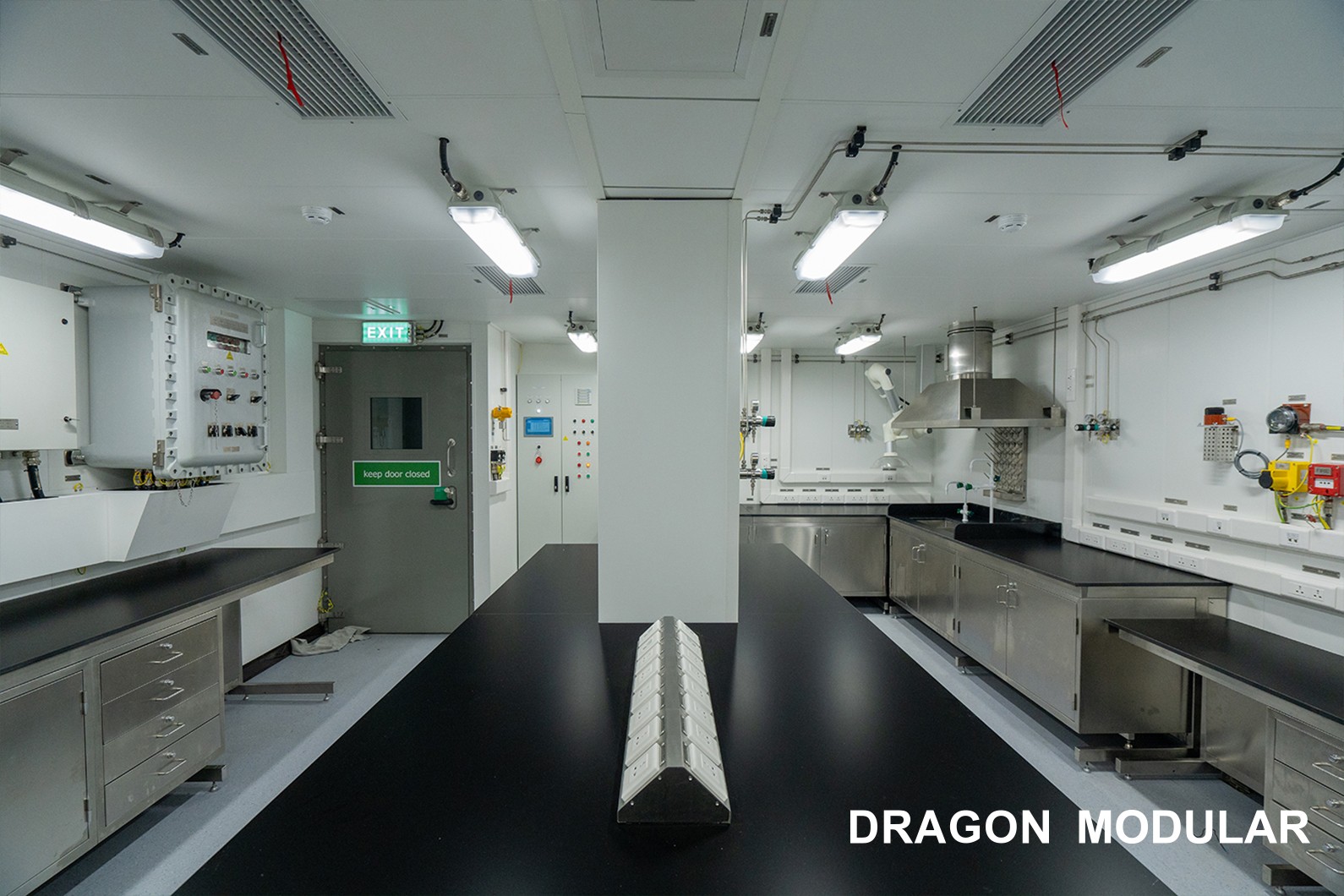

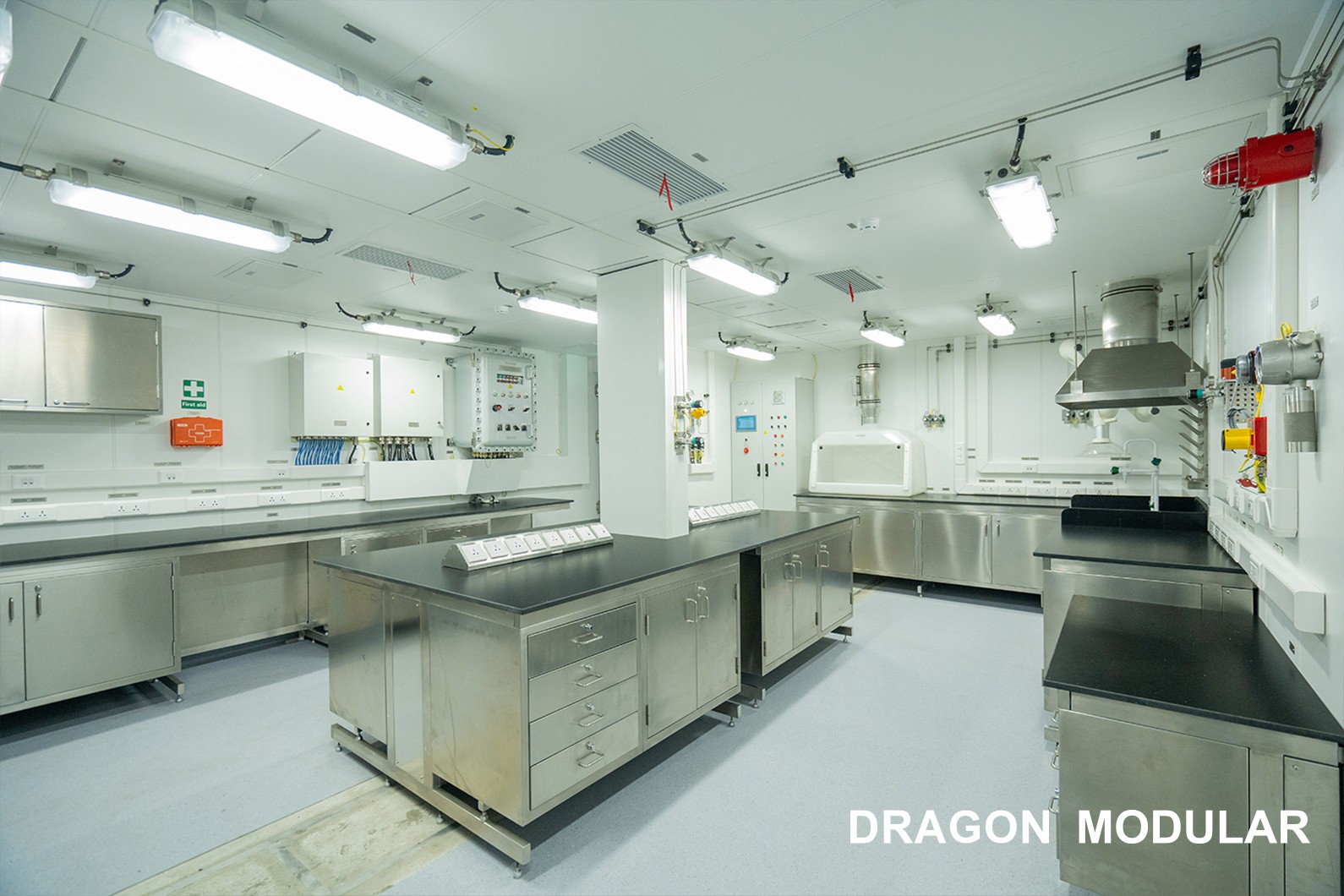

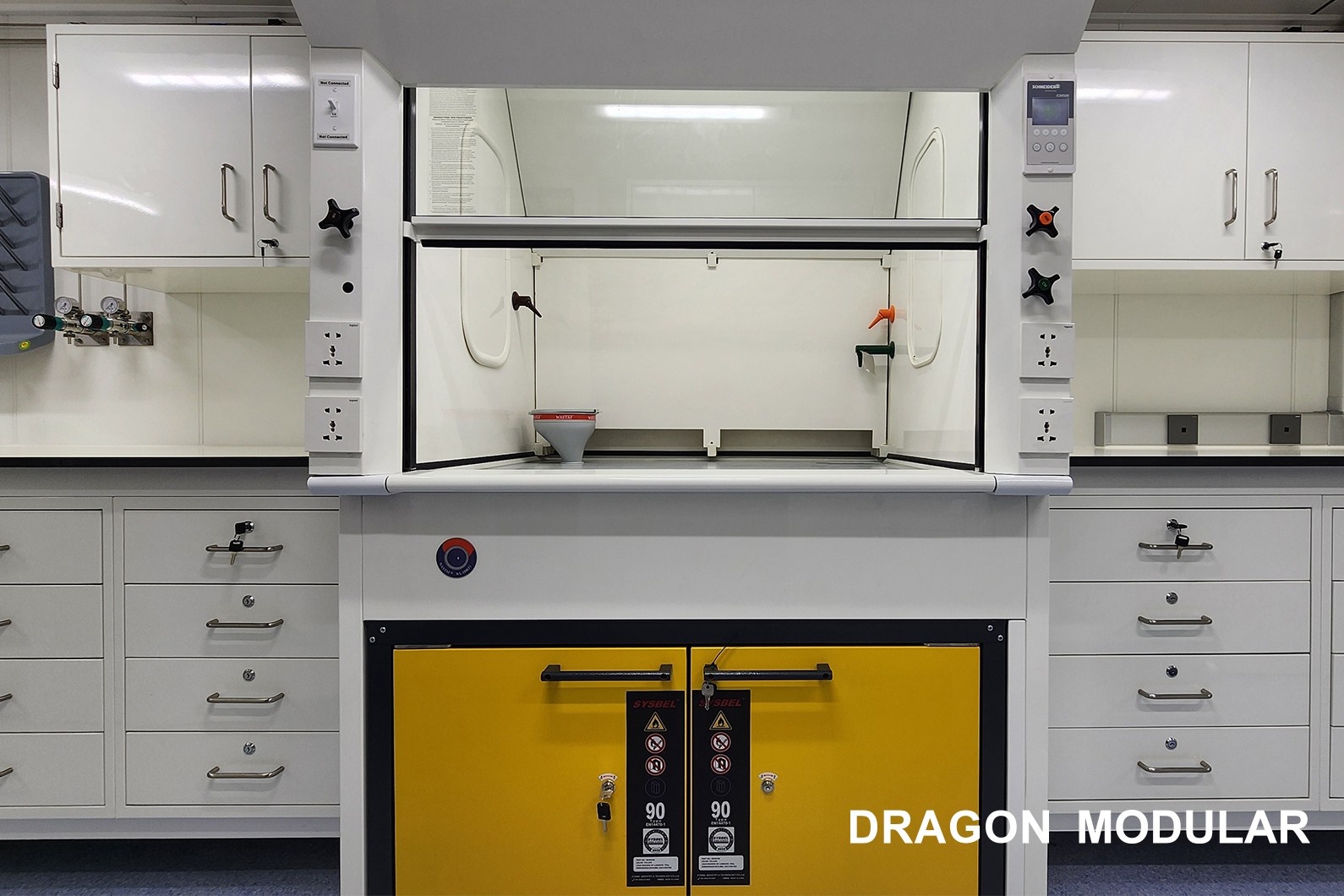

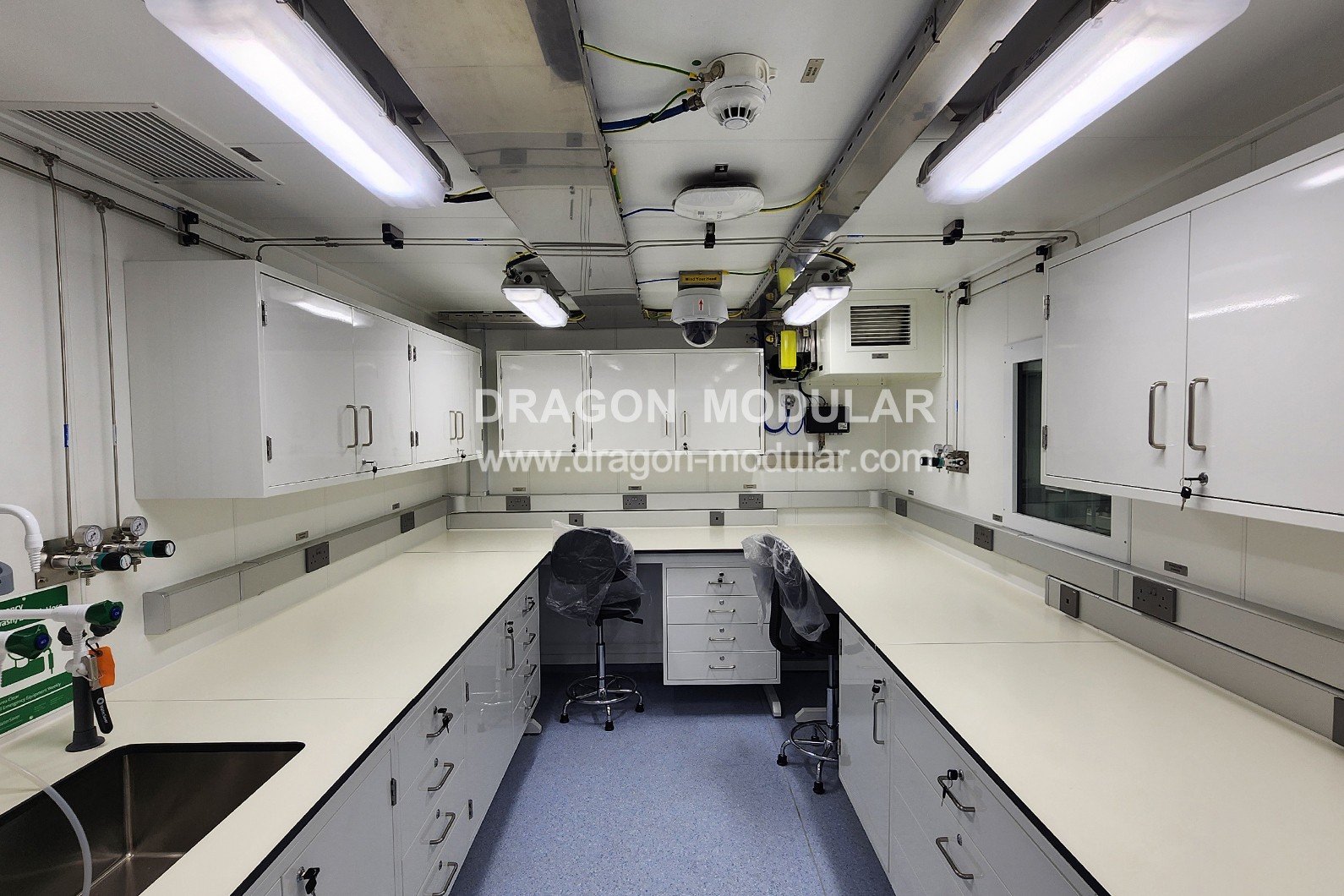

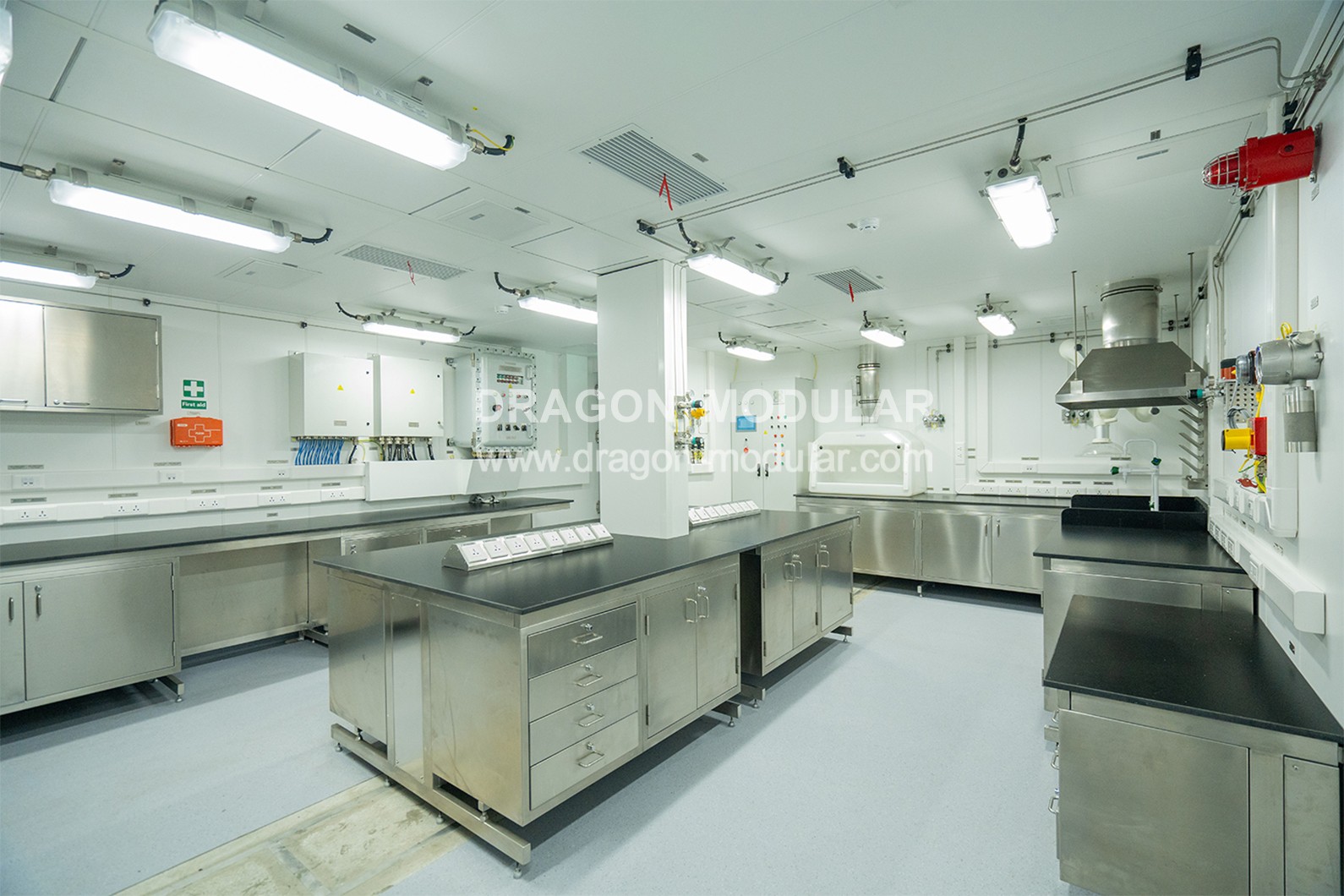

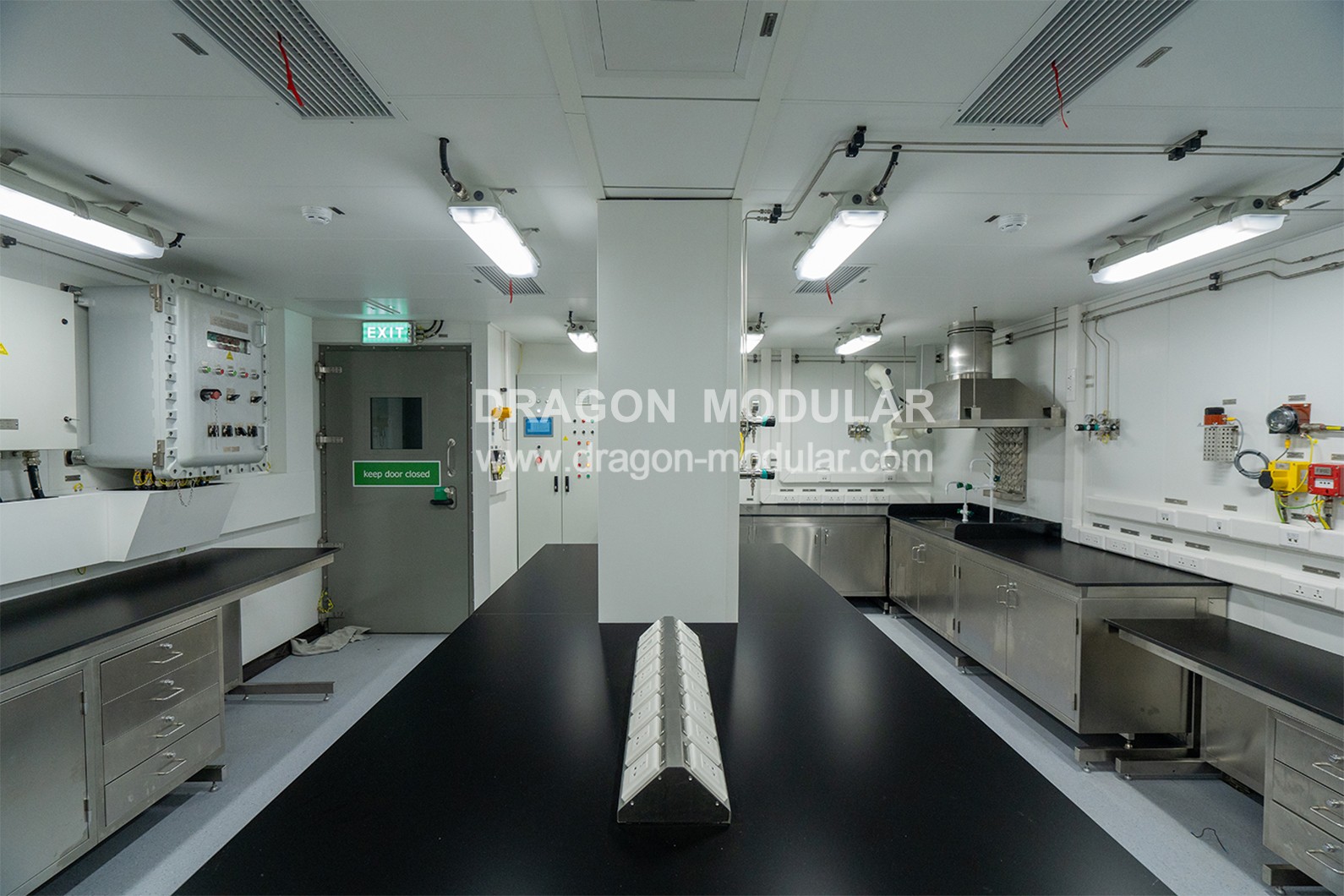

- Modular units arrive pre-furnished with workstations, storage, IT racks, sinks, and fume hoods, ready for immediate use
- Hot and cold water piping designed for specialized laboratory needs
Specifications
- DNV2.7-3, EN12079 certification
- Explosion Load Capacity: 80 kPa sustained for 100 ms
- Fire Rating: A60 FTP SOLAS for critical fire protection
- Electrical System Range: 3 Phase, 220-690V, 50/60Hz adaptability
- Detection and Alarm: Integrated smoke and gas detection linked to external monitoring
- HVAC System: 100% fresh air circulation
- Pressurization Levels: Maintains >50 Pa in main rooms and >30 Pa in airlocks for safe environmental control
- Integrated Communication: PAGA system, audible alarms, wireless access, and antenna capabilities
- Three-Coat Marine Paint System: Up to CX
